All stock codes associated to this product
i35005UCubi, i3-5005U Cubi, 19MCUBI5005U, 19M-CUBI-5005U

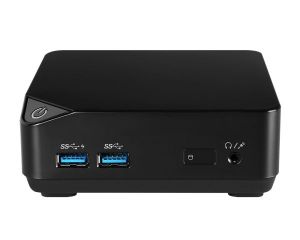

Cubi-Mini PC Kit
- Supports Windows 10/8.1/7
- Two storage options included (2.5 HDD/SSD Expansion Bay)
- Intels latest Broadwell Processor embedded. Choice of Celeron, Pentium, and Core i3/i5/i7
- 4K UHD Support, Duel Displays (HDMI and Mini DisplayPort)
- Sleek and Small Design. Choice of Black or White case.
- 4 x USB 3.0 ports
- Highly efficient; Energy Star Qualified
- Two-ball Fan Heatsink to be ultra durable and lower the noise to 20.1 dB
- VESA Mount Included
- 2-year Manufacturer Warranty
Overview
ONE DESIGN TO FIT
TWO STORAGE OPTIONS
As one of the smallest mini-PCs to date, the MSI® Mini PC kit suits the needs of both consumers and businesses by being built on the concept of modern technology and brilliant design that can easily fit into any room.
Featuring a wide range of Intel Processors, expandable storage space, and multiple ports to connect external devices; the Cubi is the essence of small and flexible computing.
Cubi comes with two storage options for you to customize. Replace the bottom plate with the detachable HDD Base to allow an additional 2.5” SSD/HDD to be stored.
VESA Mount
HDD Base Option2 (Detachable Bottom)
Storage Option2 - Height: 1.68"
mSATA SSD slot x 1
2.5" SSD/HDD Bay x 1
2.5" HDD (Not included)
or
Bottom Plate Option1
Storage Option1 - Height: 1.28"
mSATA SSD slot x 1
EMBEDDED WITH LATEST
INTEL® BROADWELL PROCESSOR
Built-in with the Intel's latest 14nm Intel® Broadwell processor (including the option of Celeron, Pentium, Core i3/i5/i7) - with an integrated GPU performance increase of 40% and total power consumption decrease of 30% compared to the previous generation – the Cubi is both powerful and energy efficient at the same time.
+40% CPU Performance
-30% Power consumption
DO MORE WITH LESS
With curved edges, smooth surface, subtle details, and conveniently positioned I/O ports, the MSI Cubi is not only smart, but sophisticated as well.
TWO-BALL FAN HEATSINK
Compared to the regular sleeve-bearing solution, Cubi chooses the Two-Ball Fan Heatsink to deliver ultra durable and longer CPU protection.
IDEAL FOR COUNTLESS APPLICATIONS
The MSI Cubi mini PC kit is one of the smallest mini-desktops suited to serve as an HTPC at home, all-around media PC in the office, or commercial project PC.
4K UHD SUPPORT
MSI® Cubi supports HD and 4K (3840 x 2160 @60Hz) ultra-high-definition content, to serve as an HTPC that helps to change your living room in a home theater where you can enjoy the best display quality.
DUAL DISPLAY
With dual display support (via HDMI and Mini Display Port) you can connect two monitors at the same time for an efficient day at the office.
QUIET AS A FOREST
20.1 dB Cubi
40 dB Library
60 dB Conversation
80 dB Vacuum cleaner
LOW POWER CONSUMPTION
This mini-PC is a true energy vanguard; in full loading the total power consumption is less than 30Watt, saving a lot of money on the energy bill.
VESA MOUNTABLE ON A MONITOR
The Cubi can be mounted to the back of a monitor, which allows the mini-PC to be completely out of sight. With such a low-noise output, you won'’t even notice it's there.
PACKAGE CONTENTS
Cubi Barebone system x1
Bottom Plate for the mSATA-SSD-only configuration
Detachable Bottom Drive Tray for additional 2.5" HDD/SSD x1
VESA-mount bracket x1
AC adapter with power cord x1
Specifications
OS
Supports Windows 10/8.1/7
Color
Black
CPU
Intel® Core™ i3-5005U Processor (3M Cache, 2.00 GHz)
Chipset
Intel SOC
Motherboard
MSI Proprietary
CPU Cooler
Two-ball fan heatsink Included
VGA
Intel HD Graphics
Memory (GB)
DDR3L SO-DIMM x 2 slots, 16GB Max
LAN
1 Gigabit LAN
Wireless Communication
Intel WiFi 3160 (M.2) + 802.11ac + BT4.0 (included)
Audio
Realtek ALC283
I/O
1 x HDMI-out, 1 x Mini DisplayPort-out
USB
Front: 2 x USB 3.0, Rear: 2 x USB 3.0
HDD/SSD
mSATA SSD slot x1, 2.5" HDD/SSD x1
ODD
n/a
System Fan
n/a
Power Supply
65W AC Adapter
Power Efficiency Level
n/a
Chassis Size
n/a
Dimensions
4.53" x 4.37" x 1.28"-1.68"
Weight
0.65 - 1.06 lbs
